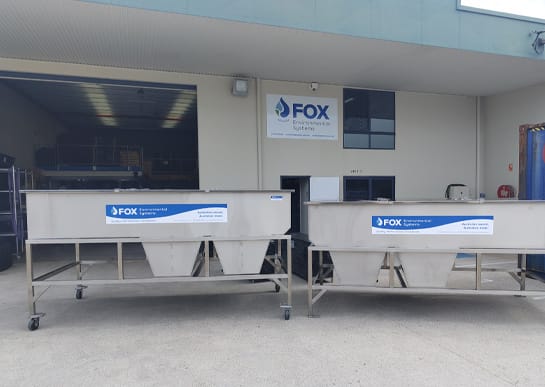

Why Choose a Fox Oil Water Separator
The Fox FX Series is engineered for long service life, low maintenance, and proven separation efficiency. Each system is manufactured in Australia from stainless steel and fitted with Vertical Tube Coalescing (VTC) filters for consistent performance in trade waste and stormwater applications.
Smaller units include 100-micron filter bags for fine solids capture, while larger systems feature expanded plate packs for higher flow capacity. All models are supplied complete with pump, float switches, low-voltage control panel, and 20L oil-collection drum – ready for compliant installation.
Talk to a Stormwater & Trade Waste Specialist about sizing for your siteOil Water Separator Applications

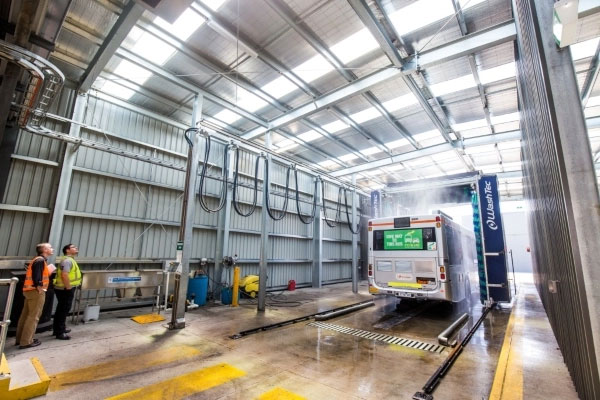

Proven performance across wash bays, workshops, and industrial sites nationwide.
Fox Oil Water Separators are trusted across Australia for trade waste, wash bay, and stormwater applications where reliability and compliance can’t be compromised, including:

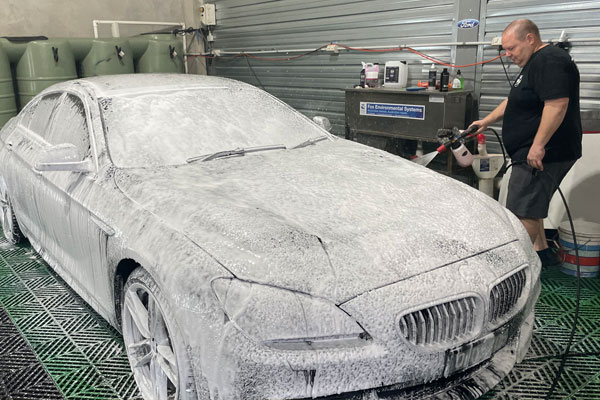

- Automotive workshops
- Car dealerships
- Truck and bus wash bays
- Equipment hire depots
- Fuel stations and refuelling areas
- Mechanical workshops
- Panel beaters and body shops

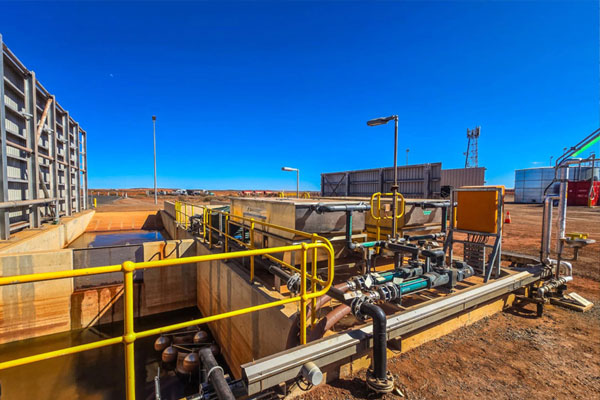

- Mining and industrial sites
- AQIS (Biosecurity) wash bays
- Marine and boat maintenance
- Plant and machinery wash pads
- Local council depots
Australian-Made Oil Water Separators for Long-Term Performance
Built for Australian Conditions
Tested in wash bays, workshops, and industrial sites nationwide – Fox FX Series separators are designed for reliability, serviceability, and compliance in every installation.
All Fox oil water separators are manufactured in Australia from high-grade stainless steel and engineered for long service life in demanding environments. Each unit uses Vertical Tube Coalescing (VTC) technology for effective hydrocarbon separation and includes 100-micron filter bags on smaller models (FX1000SS, FX1500SS, FX3000SS).
Every system is packaged to meet biosecurity and local council trade waste requirements, supplied complete with a diaphragm pump, float switches, a low-voltage control system, and a 20-litre waste oil drum.
Talk to a Stormwater & Trade Waste Specialist about sizing for your siteCompare Fox FX Series Oil Water Separator Models
Find the right oil water separator for your wash bay, trade waste, or stormwater application. Standard flow rates range from 1,000 L/hr to 30,000 L/hr, with custom units up to 200,000 L/hr available on request.
| Model | Max Flow Rate (L/h) | Inlet Size | Outlet Size | Gate Valve | Weight Empty | Weight Full | Specifications |
|---|---|---|---|---|---|---|---|
| FX1000SS | 1000 | 40mm BSP Female | 50mm BSP Female | 40mm BSP Male | 44kg | 165kg | 📄 Download Spec Sheet 📄 Download FXP 1000 Diaphragm Pump Spec Sheet |
| FX1500SS | 1500 | 40mm BSP Female | 50mm BSP Female | 40mm BSP Male | 56kg | 220kg | 📄 Download Spec Sheet 📄 Download FXP 1500 Diaphragm Pump Spec Sheet |
| FX3000SS | 3000 | 40mm BSP Female | 50mm BSP Female | 2 x 40mm BSP Male | 80kg | 430kg | 📄 Download Spec Sheet |
| FX6000SS | 6000 | 2 x 65mm BSP Female | 100mm BSP Female | 2 x 40mm BSP Male | 245kg | 1170kg | 📄 Download Spec Sheet |
| FX10000SS | 10000 | 2 x 80mm BSP Female | 2 x 100mm BSP Female | 4 x 50mm BSP Male | 340kg | 2240kg | 📄 Download Spec Sheet |
| FX15000SS | 15000 | 2 x 80mm BSP Female | 2 x 100mm BSP Female | 4 x 50mm BSP Male | 590kg | 2935kg | 📄 Download Spec Sheet |
| FX20000SS | 20000 | 2 x 80mm BSP Female | 2 x 100mm BSP Female | 4 x 50mm BSP Male | 590kg | 3630kg | 📄 Download Spec Sheet |
| FX30000SS | 30000 | 2 x 80mm BSP Female | 2 x 100mm BSP Female | 4 x 80mm BSP Male | 740kg | 4090kg | 📄 Download Spec Sheet |
Need help sizing? Our team can match the correct model to your flow rate and compliance needs fast.
Request Model Sizing & QuoteAll Fox oil separator units are supplied with matching diaphragm pumps and smart control systems, ensuring precise flow handling in oily wastewater treatment and stormwater runoff environments.
Low-Voltage Pump/Control Box: Automates pump operation, featuring:
- On/Off auto selector switch
- An hour run meter ((X3 model only) to track runtime)
- A high-level alarm (top, amber-colored) for alert visibility
- Safety warnings and labels for electrical hazard control
Float Switches (Blue & Yellow): These detect water levels inside the separator tank and automatically trigger the pump to turn on/off, preventing overflows or dry running.
Diaphragm pump: Ideal for transferring oily wastewater and sludge to an oil separator.
- Non-emulsifying operation: Prevents oil and water from blending, which helps maintain clear separation and simplifies treatment.
- Self-priming: Works even in low water level conditions or dry starts.
- Corrosion-resistant materials: Built to withstand harsh trade waste environments.
Related Systems
- First Flush Systems – for pollutant diversion at the source
- Gross Pollutant Traps – for large debris interception
- Compare all stormwater treatment systems in our full product range
Need a certified oil water separator system for your wash bay or trade waste setup?
Speak directly with the manufacturer – Fox Environmental Systems – for fast quotes, spec sheets, and nationwide delivery.
